Upgrading Your Miata's Fuel System for Performance Builds

If you’ve turbocharged or otherwise pumped up the power in your Miata, you might have noticed that the stock fuel system sometimes just can’t cut it. When you start demanding more from the engine, whether that’s on a racetrack or during hard street pulls, you run the risk of hitting lean conditions at high RPMs or experiencing abrupt dropouts when the fuel pump can’t keep pace through long corners. All this points to one conclusion: you need a stronger, more capable fuel system. Upgrading key components such as the fuel pump, lines, filters, injectors, and wiring helps ensure your Miata always has the fuel delivery it needs, what many call the ability to “squirt gas to haul ass.”

When owners really dive into their build, they often discover that a complete approach, from the tank or surge tank, through upgraded filters and lines, to a beefy aftermarket fuel rail and adjustable regulator, brings the best results. In this article, we’ll walk through each stage of that upgrade path, lay out the essential parts you’ll need, and discuss how to put it all together safely.

Why Upgrade?

Cornering fuel starvation is a common headache for many Miata enthusiasts. Under sustained lateral G-forces, especially if you’re running a track day or carving canyons, the fuel in the tank can slosh away from the pickup, causing momentary starvation. A surge tank is often a smart fix for this, as it provides a mini-reservoir so the main pump never goes dry when you’re turning hard.

Another major reason to upgrade is simply the flow requirements of big-power builds. If you’re turbocharging, supercharging, or going for a high-horsepower naturally aspirated setup, you could easily exceed the limits of the stock fuel pump. Many people move to high-flow pumps rated from around 255 liters per hour (LPH) all the way up to 450+ LPH. And if you’re planning to run E85 or flex-fuel, remember that ethanol demands roughly 30% more volume, which means bigger pumps and injectors are practically mandatory. Lastly, don’t overlook voltage drop. Higher-flow pumps draw more amps; relying on the thin stock wiring can result in a pump that’s never quite seeing full voltage, or worse, you could pop fuses. This is why a dedicated relay harness with thicker gauge wire can make a world of difference.

Major Components of an Upgraded Fuel System

A big part of any upgraded system is, of course, the fuel pump. Popular choices include Walbro (TI Automotive) pumps like their 255, 340, and 450 LPH models, as well as AEM 340 and DeatschWerks pumps such as the DW200 and DW300. If you plan to run E85, double-check that your chosen pump is ethanol-safe. Some aftermarket pumps slot into the stock hanger with minimal cutting, though others need minor fabrication or creative solutions (hose clamps, zip ties, or custom brackets).

For more track-focused Miatas, a surge tank is a worthwhile add-on. This smaller “backup” tank, kept full by your in-tank pump, ensures that hard cornering won’t cause fuel starvation for the main, high-flow pump that feeds your engine. From there, you’ll also want to consider upgrading your fuel rail and injectors. Many aftermarket rails allow an external adjustable regulator, which is extremely useful if you’re pushing the limits of the factory pressure regulation. Injectors need to be sized appropriately for your power goals and fuel type, commonly, people go with 960cc Flow Force injectors or 1000–1300cc sets from brands like Injector Dynamics, especially if they’re looking at E85. Pairing that with a good fuel pressure regulator (from companies like Raceworks, Aeromotive, or Fuelab) ensures your system can maintain consistent pressure, even under high boost.

Preliminary Steps and Safety

Before you start taking everything apart, disconnect your battery’s negative terminal. Working around gasoline demands an extra level of caution, there’s no room for sparks or unintended electrical contact. Next, relieve the existing fuel pressure by pulling the fuel pump fuse or relay, then cranking the engine until it stalls. You’ll still have a little fuel in the lines, so keep a rag and some eye protection handy.

Because you’ll likely be cutting or replacing lines (and maybe mounting a surge tank), plan your workspace with ventilation in mind and keep a fire extinguisher within reach. Figure out in advance where you want any new components, especially a surge tank, which typically goes in or near the trunk area, and decide how you’ll route filters, lines, and the fuel pump wiring harness. Taking the time to plan your layout will save a lot of headache once you actually start wrenching.

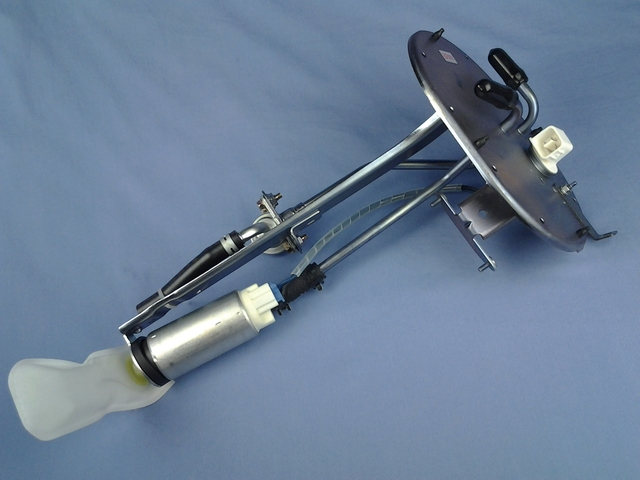

Removing and Replacing the In-Tank Pump

In NA and NB Miatas, you can usually access the fuel pump through a panel on the parcel shelf behind the seats. Remove any carpeting or trim, then unscrew the cover. The factory feed and return hoses might be old or stuck, so be prepared to carefully cut them if needed. Label them immediately so there’s no confusion later.

When you pull the pump hanger assembly out, be gentle, there’s often a short in-tank hose on top of the pump that’s prone to failing if it’s old or poorly clamped. For many 1.6-liter cars, you might see a separate steel hard line in the hanger that needs trimming if you’re dropping in a bigger pump. Make sure to use submersible-grade fuel hose (rated SAE 30R10) and solid clamps for any connection inside the tank. And if your new pump doesn’t fit perfectly, get creative with secure brackets or clamps (zip ties might work in a pinch, but a metal clamp is more reliable long-term).

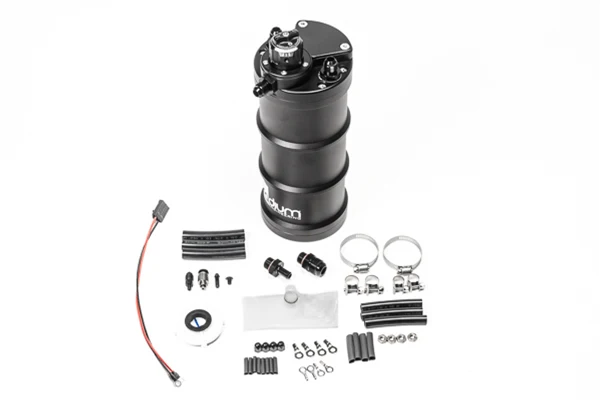

Adding or Mounting a Surge Tank (Optional)

A surge tank can be a game-changer if you regularly track your Miata or corner hard. Your in-tank pump feeds the surge tank, and the high-flow pump in the surge supplies fuel to the engine. Even if your main tank pickup briefly goes uncovered, the surge tank remains full throughout a corner, preventing lean-outs or starvation. Most surge tanks are around one or two liters in capacity, though there’s a range of shapes and sizes available to fit different setups.

Placement is typically in the trunk area or somewhere close to the factory tank. Make sure to secure it with proper brackets, as you don’t want a heavy fuel-filled container bouncing around. Then run lines for the feed, overflow, and the main pressure line to the engine. As with any high-flow pump, the one inside the surge tank will also need good wiring and a relay to ensure it isn’t starved for voltage.

Fuel Lines & Filters

The Miata’s stock hard lines can handle a moderate jump in horsepower, but you’ll likely need adapters to mate them with aftermarket AN hoses. If you see any signs of rust, consider replacing them or going all-out with a new line setup. When you go bigger, or switch to E85, a set of PTFE-lined braided hoses is the gold standard, as regular rubber lines tend to degrade over time with ethanol.

Fuel filtering is equally important, especially if you’re pushing serious flow or using E85. The factory Miata filter on the NB is near the rear subframe, while the NA 1.6 has it near the firewall. You can keep the stock filter if you’re sticking to pump gas (just replace it regularly), but an aftermarket inline filter, usually with a 10-micron element, is often better for high-performance or ethanol builds. Decide if you want the filter in the stock location or under the hood for easier access, just be mindful that any changes to the system might mean new hoses and fittings.

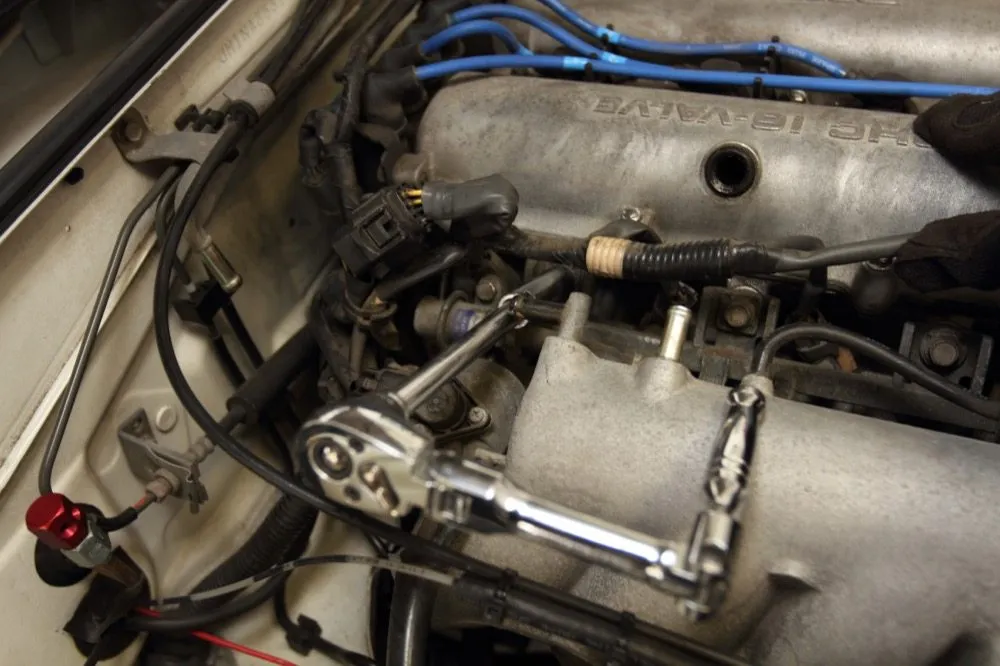

Fuel Rail, Injectors, and Pressure Regulation

Upgrading to an aftermarket fuel rail lets you tap for extra sensors and often offers more consistent flow. Check that the rail you buy fits your Miata generation (NA vs. NB) and manifold. Some manifolds require extra brackets or a different rail altogether. Next, pick your injectors carefully. Something in the 960cc to 1300cc range can support quite a lot of power, particularly on E85, but always confirm your ECU can handle and tune injectors of that size.

If you remove the factory regulator, you’ll need an external adjustable FPR. Brands like Aeromotive and Fuelab are popular choices. A rising-rate regulator references vacuum or boost so that for every PSI of boost, you add a PSI of fuel pressure, keeping the differential pressure across the injector the same. This helps maintain consistent fueling as boost ramps up. Many folks also install a 0–100 PSI pressure sensor on the rail or regulator to log or monitor real-time fuel pressure. If you’re going the flex-fuel route, a GM/Continental ethanol sensor can feed data to your ECU, letting you auto-adjust fueling for varying ethanol content.

Wiring & Relay Upgrade

Some of the biggest fueling issues come down to wiring. Large pumps (Walbro 450, AEM 340, DW300, etc.) can pull 15–20 amps or more. If you’re still using the factory relay and skinny wires, there’s a good chance your voltage at the pump is dropping below 12 volts under load. This directly impacts how much fuel the pump can deliver, leading to potential lean conditions in boost.

A dedicated relay harness fixes this by providing a heavy-gauge wire straight from your battery’s positive terminal to the pump. You use the old pump wiring (or the factory relay output) as a trigger to the new relay, so the stock circuit doesn’t carry the main current. The new relay sends battery voltage to the pump, and you ground it with an equally hefty wire. Size your fuse appropriately (20–30 amps is common) and mount the relay securely in a spot where you won’t risk drilling through the tank or lines.

Priming, Setting Fuel Pressure, and Leak Checks

Once your new hardware is in place, cycle the ignition a few times or use your ECU’s test mode (if available) to prime the lines, filters, and possibly your surge tank. Check every hose, clamp, and fitting for leaks, fuel under pressure can drip from the smallest imperfections. Then set your base fuel pressure by disconnecting the vacuum line from the regulator and adjusting to around 43.5 psi or whatever your target is (some big-power builds run base pressures up to 60 psi).

With the vacuum line reconnected, start the engine and keep an eye on the gauge. At idle, pressure usually drops slightly because the engine’s pulling vacuum. Under boost (or on the dyno/street), watch to ensure that fuel pressure tracks roughly 1:1 with boost. If it suddenly falls or fluctuates, you may need to revisit your pump sizing, wiring, or regulator.

ECU Tuning & Maintenance

Big injectors require recalibration in your ECU, especially the “Required Fuel” values, injector flow rates, and offset/dead times. If you’re stepping into E85 or a flex-fuel setup, you’ll want an ECU that can read the ethanol content sensor and blend fuel/timing maps accordingly. A professional dyno tune is strongly recommended so everything is dialed in.

Even after everything’s up and running, keep up on maintenance: filters should be changed regularly, especially if you use ethanol-based fuel (which absorbs moisture and can cause corrosion). Inspect your lines, clamps, and wiring connections to make sure nothing has loosened or deteriorated over time. If you start approaching your new pump or injectors’ limits, remember you can go even bigger, run dual pumps, or upgrade your surge tank capacity. The more data you log (like fuel pressure and temperature), the more likely you are to catch potential issues early and keep your Miata’s engine safe.

Fully upgrading your Miata’s fuel system, covering the pump, lines, filters, regulator, injectors, and wiring, can absolutely transform the reliability and consistency of your fueling, letting you push the car harder and aim for loftier power goals. Whether you’re charging around a racetrack on E85 or simply want to ensure you never starve the engine under hard cornering, these modifications give you peace of mind.

Take it slow, use high-quality parts, and meticulously check for leaks and proper voltage at the pump. A well-thought-out fuel system means you can confidently turn up the boost, rely on accurate wideband readings, and keep upping the horsepower without worry. So strap in, keep the pedal down, and know that your Miata’s fuel setup can handle whatever you throw its way!
