Retrofitting Modern Tech into Older Miatas

A drama-free guide to sneaking 2025 convenience into a 1990s cockpit

Content Crew profile image
by Content Crew
Retrofitting Modern Tech into Older Miatas

Why bother retrofitting?

Living with an NA or NB every day means accepting a tape deck that only knows FM, speakers that crackle like Rice Krispies and enough road noise to drown out any playlist. Modern gear fixes those annoyances by adding Bluetooth calls, streaming audio, USB-C charging and clearer sound, yet it doesn’t dilute the car’s lightweight, analog character. The sweet spot is the OEM-plus mindset: everything you add should be reversible, look period-correct, weigh next to nothing and leave the rare factory plastics unscarred.

Start with a vision, not a part number.

Before picking up a trim tool, decide that the cabin still has to look stock. Keep the original “tombstone” radio surround, the factory blanking plates and Mazda’s warm-green back-lighting. Use an ISO or Crutchfield adapter loom so the original connector stays untouched and, just in case you or a future owner wants to go back to bone-stock, bag every screw, label every plug and shoot photos before the first crimp.

Lay a solid electrical foundation.

 Tech upgrades are pointless if a tired battery and corroded ground straps introduce alternator whine. Drop in a healthy AGM, scrub the firewall and frame-rail grounds shiny, then remember that a modern single-DIN stereo only draws about five amps through the speakers. Leave another ten amps of headroom if you plan to hide a powered under-seat sub so the electrical system isn’t living on the edge.

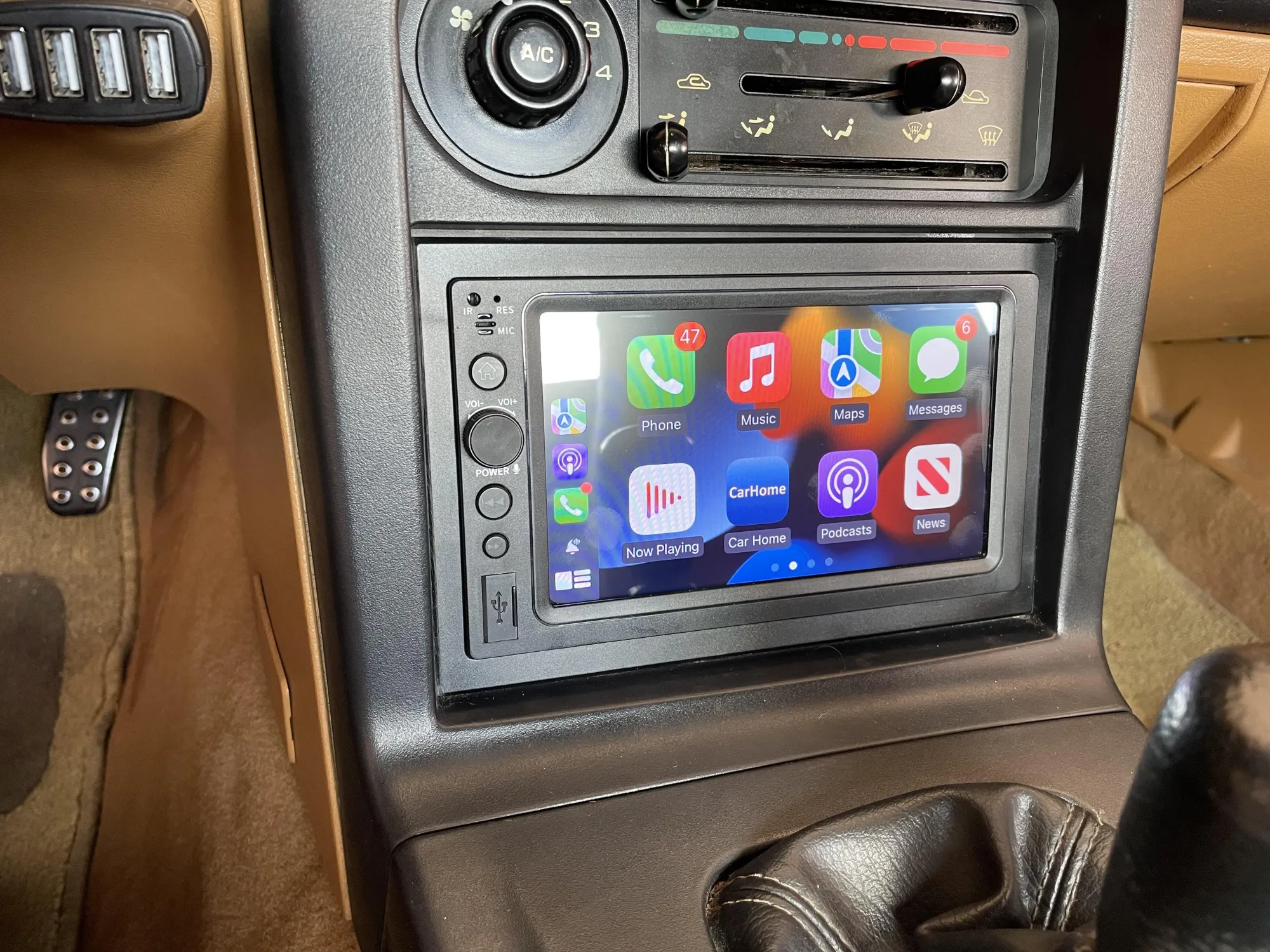

Pick a head unit that fools casual observers.

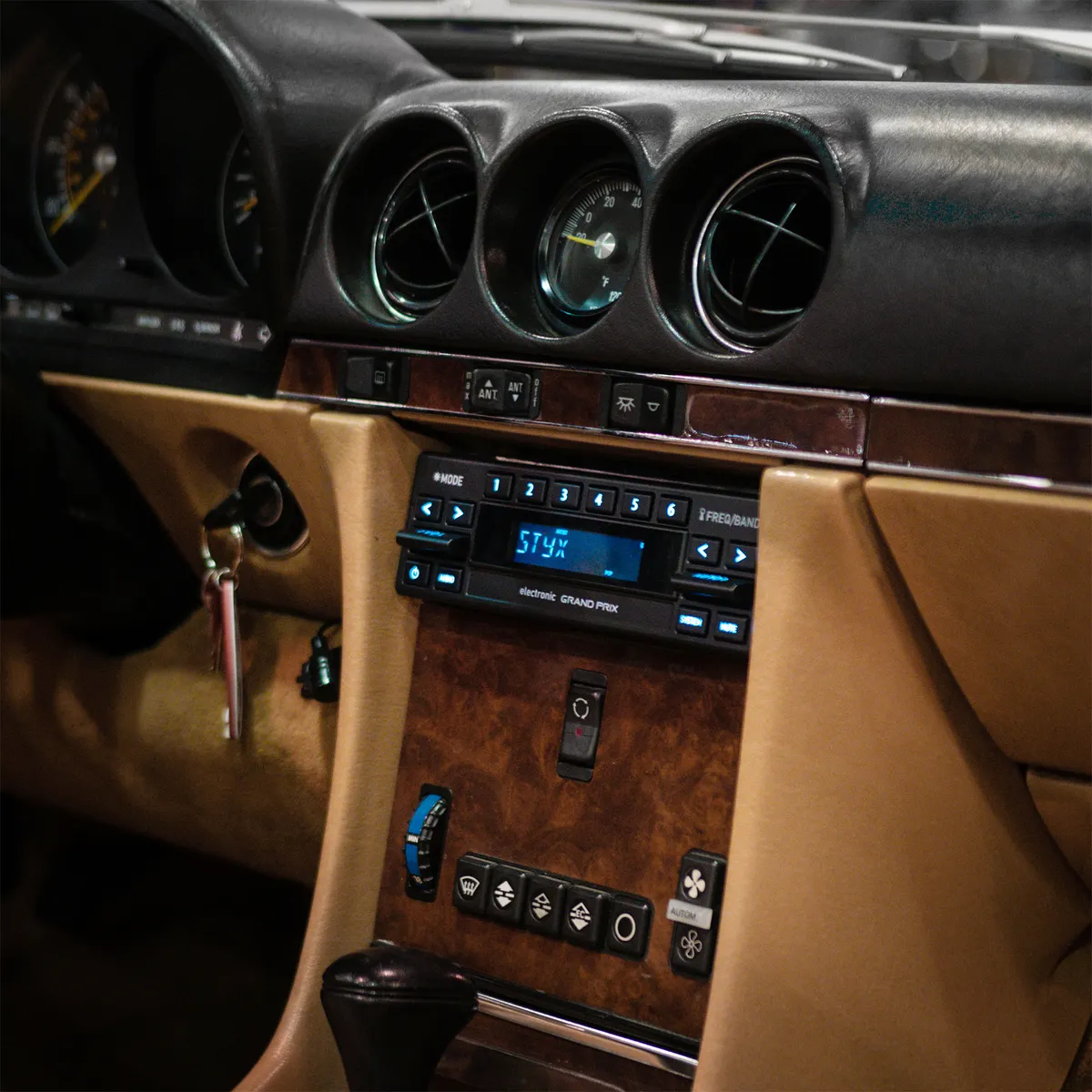

Blaupunkt’s Bremen SQR 46 DAB looks like it escaped from a late-eighties Volkswagen, yet offers dual USB, SD, full-fat Bluetooth and color-change back-lighting that can match your gauges. Its cheaper sibling, the Nürnberg 200, does the same trick for less cash and even takes an optional CD slot. RetroSound’s Grand Prix nails the paddle-button vibe while Continental’s TR7412UB-OR resembles a nineties VDO unit and even shrugs off a sudden shower thanks to marine-grade buttons. Whichever radio you choose, use Miata-specific side cages to stop the faceplate sagging mid-corner, snake the Bluetooth mic up the A-pillar so it hides behind the sun-visor and, if you crave a flush double-DIN look, import a JDM tombstone and pop a blank panel above or below the radio.

Upgrade speakers and tame the tinny cabin.

 A pair of shallow-mount 6.5-inch woofers on MDF baffles slide straight into the doors without worrying the glass. While the seat covers are off, swap the original two-inch head-rest drivers for modern coaxials, your neck will thank you on long drives. Stick a 25-square-foot pack of two-millimeter butyl-aluminum mat on the outer door skins, parcel-shelf triangles and transmission tunnel. Suddenly the car feels less like a soup can and more like a sports car.

Hide connectivity where no one expects it.

Glue a ten-watt Qi pad under the ashtray insert so phones top-up with the lid closed, replace the lighter socket with a thirty-watt USB-C outlet that keeps the factory bezel and slide an OBD-II Bluetooth dongle into the port of any ’96-up NB, or wire a harness into an NA, so real-time data streams to the same phone that’s now wirelessly charging.

Add safety and convenience without looking “aftermarket.”

 A license-plate-light replacement camera feeds video to a rear-view-mirror screen that clips on for daily use and unclips at shows, warm-white H4 LEDs behind the fluted lenses double your lumen count without that tacky blue glare, and a discreet keyless-entry module hides in the passenger foot-well while you keep the familiar Mazda key.

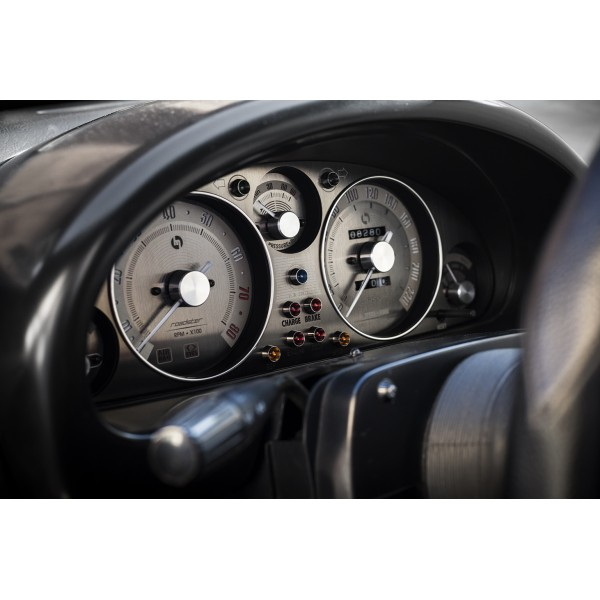

Slip in gauges that blend right in.

 A cigarette-lighter voltmeter or a black-bezel wideband with green back-lighting looks like Mazda installed it. If you need more data, IL-Motorsport sells a cubby insert that lets you add oil-temperature or charge-level gauges without drilling the cluster.

Dial up comfort the OEM-plus way.

Swapping to the later NB scroll-type compressor yields colder air-conditioning on modern R-134a, yet bolts up with minimal bracket juggling. Carbon-fiber heating pads slide between seat foam and vinyl, and the switches can occupy a spare factory blank so passengers assume seat-warmers were always an option.

Know the time and money you’ll spend.

Budget roughly 250 to 450 USD and about an hour to fit a head unit with the correct harness. Figure on 200 USD and an easy afternoon to add door speakers and sound-deadening, 40 USD and under an hour to tuck in a Qi pad and USB-C outlet, another 60 USD and a couple of hours on your back to route a reversing-camera cable, and 90 USD plus half an hour for plug-and-play LED bulbs. None of it requires more than basic trim-removal or light soldering skills.

 Keep the original radio, speakers and tombstone in a dry-sealed box, refuse to cut the factory loom, and document every step with photos. Future-you, or whoever buys the car next, will bless your name.

Where to dive deeper.

MossMiata’s Audio & Video catalog stocks every cage and RetroSound widget you’ll need, while Miata.net and r/Miata are packed with user-tested wiring diagrams and deadening tips. Even though Jeff Anderson’s legendary OEM-radio refurbishment service closed in 2021, his archived guides remain essential reading.


Modern tech can live happily inside an NA or NB cabin without screaming aftermarket. Choose radios that mimic period plastics, hide every cable run and stash every factory part for the day nostalgia wins. You’ll enjoy 2025 convenience while the cockpit still oozes 1990s charm, proof that an analog roadster and digital life can, in fact, be best friends.
