NB Miata-Specific Maintenance Schedules

This is a practical, NB  maintenance plan you can drop straight into your workshop. Always pick the earlier of time or mileage, because fluids age on the calendar even when the odometer barely moves. Mazda publishes a “normal” and a “severe” schedule; if your NB sees short trips, heavy traffic, tropical heat or humidity, dusty roads, or any track or autocross time, treat it as Severe. One stress-busting note up front: the NB’s BP engine is a non-interference design, so a missed belt usually won’t bend valves, but it can still leave you stranded, which is reason enough not to punt timing service.

Generational Notes

For NB1 models from 1999–2000, you’re dealing with the BP-4W 1.8 that uses external coils and plug wires, and overall upkeep is very straightforward. NB2 cars from 2001–2005 switch to the BP-6D with variable valve timing; that VVT system relies on clean oil and proper viscosity, so time-based oil changes matter even if miles are low. Most NB2s also added a cabin filter slot behind the glovebox, which is easy to forget on cars that changed hands. For Mazdaspeed Miata (MSM) models in 2004–2005, the timing belt setup is the same as other NBs, but oil quality and hose health matter more because of the turbo and pressurized intake plumbing; if you daily an MSM in heat or drive it hard, just default to the Severe schedule across the board.

Oil and Filters

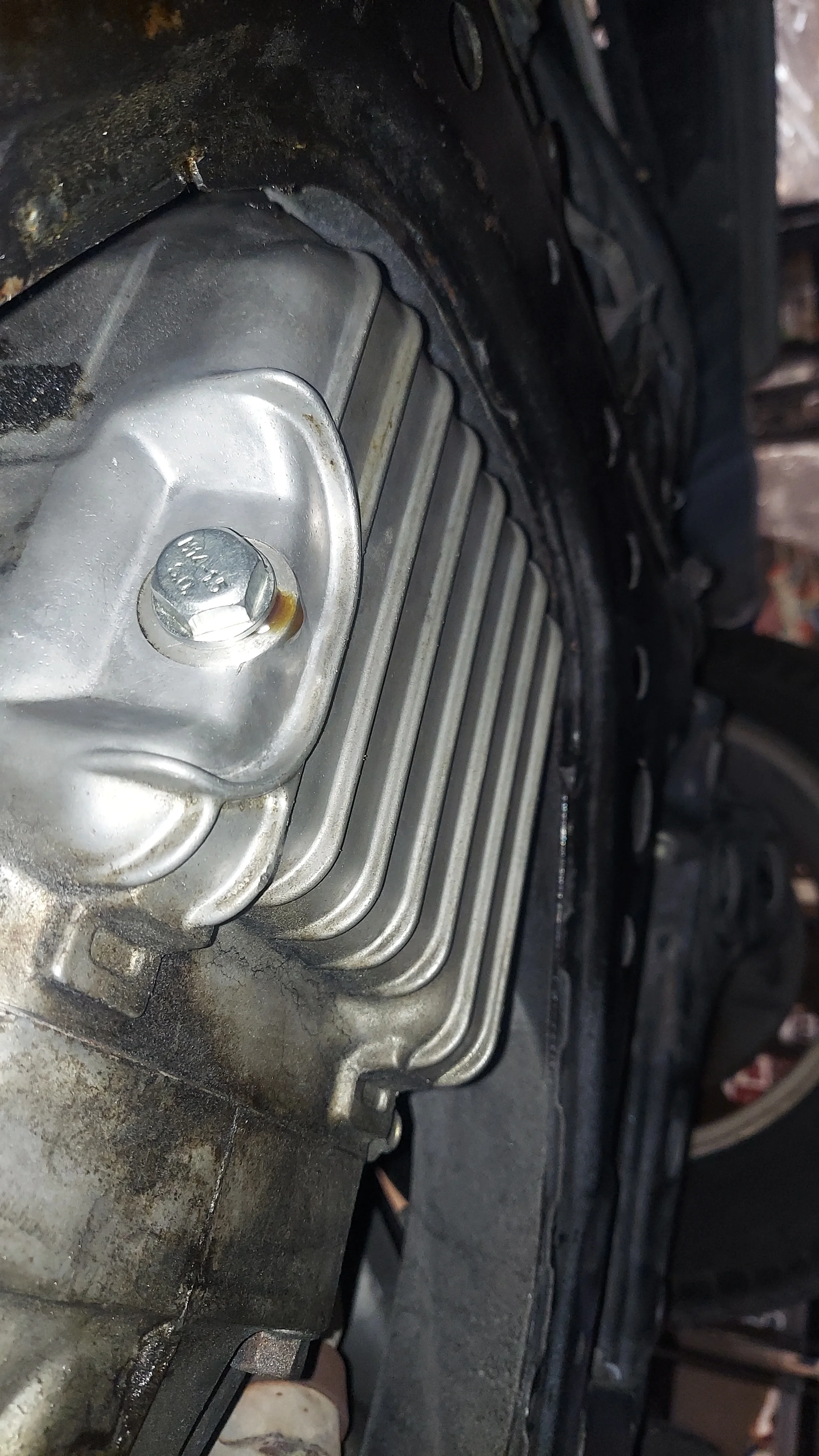

Under normal use, engine oil and filter service at roughly 7,500 miles or 12 months keeps the BP happy, but in humid, hot, dusty, or short-trip conditions it’s smarter to shorten to something like 5,000 miles or six to twelve months. The MSM, thanks to the turbo, deserves the shorter end of that range. Treat the air filter as a 25,000-mile or two-year item and bring it forward if you live with dust or frequent construction zones. For NB2s with a cabin filter, assume a similar 25,000-mile or two-year cadence, and be ready to change it more often if the car sits outside in polluted or dusty areas.

Ignition

Spark plugs on an NB can run a long time, but a sensible interval is about 75,000 miles for normal use and closer to 60,000 miles for cars that live in the Severe lane. If you’re chasing misfires on an NB1, remember that age and heat are not kind to plug wires; a fresh set along with plugs can transform idle quality and throttle response.

Cooling System

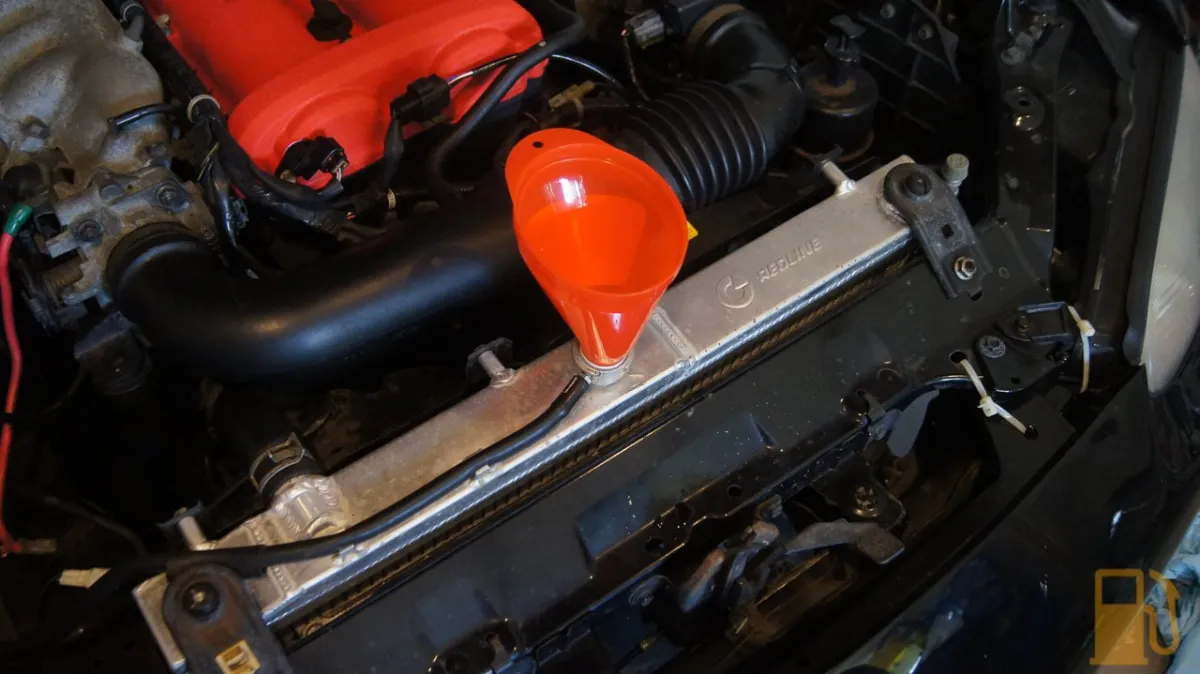

Coolant is mileage and time sensitive. A practical rhythm is a first replacement around 60,000 miles or four to five years, followed by every two years thereafter. If your NB’s service history is fuzzy, reset the clock and start fresh, then stick to the two-year cadence. Long-life formulas exist, but unless you have clear documentation that proves compatibility and longer intervals, follow the conservative schedule. Overheat margin on these cars is decent when everything is healthy, but an aging radiator or a lazy thermostat can sneak up on you, so a pressure test and a careful look at end tanks during coolant service is cheap insurance.

Drive Belts and Timing Belt

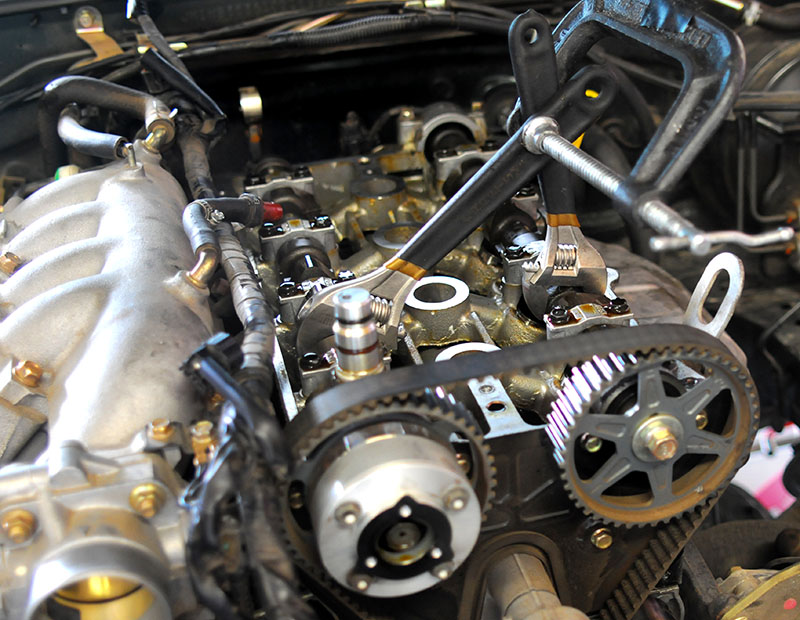

Accessory belts deserve a quick look at every oil change and a closer inspection at least every 15,000 to 30,000 miles; any cracking, glazing, squeal, or fray means it’s time. The timing belt on all NBs, including the MSM, should be treated as a 60,000- to 90,000-mile or six- to eight-year item in the real world, and an immediate replacement if the age is unknown. Most owners pair the belt with a water pump, idlers, tensioner spring, and front cam/crank seals in one visit to minimize repeat labor and lock in reliability for the next cycle.

Brake and Clutch Hydraulics

Brake fluid absorbs moisture and loses boiling point over time, so changing it every two years is smart for street cars and every year if you live in humid climates or drive mountain roads with enthusiasm. The clutch shares the same fluid family; bleed or refresh it on the same cadence. A firm pedal and consistent bite after a fluid service is one of those small “new car” feelings that never gets old.

Gearbox and Differential

Manual transmission oil in an NB benefits from periodic replacement, typically somewhere between 30,000 and 60,000 miles depending on use and shift feel. Mazda’s guidance allows GL-4 and GL-5 75W-90 in this era; many owners prefer GL-4 for friendlier synchro feel. The rear differential wants GL-5 75W-90 and appreciates the same 30,000- to 60,000-mile cadence, shortened if you track the car or do lots of hot highway miles.

Fuel System

The NB still runs an in-line, serviceable fuel filter under the car. Changing it in the 60,000- to 90,000-mile window is cheap peace of mind, and it’s a must if you’re chasing lean conditions or fuel-starvation symptoms. On high-mileage cars, inspect rubber fuel lines while you’re there and replace anything that’s soft, cracked, or seeping.

“While You’re In There” Bundles

At 60,000 to 90,000 miles or six to eight years, plan a comprehensive timing service that includes the belt, idlers, tensioner spring, water pump, front seals, accessory belts, a fresh thermostat, and new coolant with a proper burp. This turns a potential roadside failure into a reset clock. At 30,000 to 60,000 miles, do a driveline refresh by changing the gearbox and differential oils, flushing brake and clutch hydraulics, and giving the driveshaft, axle and ball-joint boots, bushings, and alignment a careful once-over.

Annual and Seasonal Habits

Make brake and clutch fluid a yearly ritual if you live in humid climates or drive hard, clean the soft-top drains so water doesn’t back up into the cabin, load-test and maintain the trunk-mounted battery before long trips, and check A/C performance ahead of the hottest months. As these cars age, it’s also smart to re-torque critical suspension and exhaust fasteners once a year, especially after bushing or exhaust work.

Extra Attention for NB2/VVT and MSM

On NB2 engines with VVT, oil cleanliness and viscosity discipline keep the VVT actuator and its tiny filter from sticking. If you’re a low-miles driver, don’t skip the calendar-based oil changes. On MSM cars, shorter oil intervals pair well with frequent inspections of intercooler couplers, clamps, and vacuum lines; turbo plumbing that’s tight and leak-free keeps boost predictable and intake air temperatures under control.

Quick Fluids Guide

For engine oil, stick with era-appropriate viscosities such as 5W-30 or 10W-30 and adjust for climate and usage rather than chasing exotic blends; the owner’s manual guidance still maps well to real life. The manual transmission runs best on a quality 75W-90 with GL-4 chemistry if you’re picky about shift feel, while the differential calls for GL-5 75W-90 regardless. Brake and clutch systems are happy on DOT 3, with DOT 4 acceptable if you want a higher boiling point. Coolant should follow the long first interval and then settle into a two-year cadence to keep corrosion inhibitors fresh.

Inspection Habits That Catches Problems Early

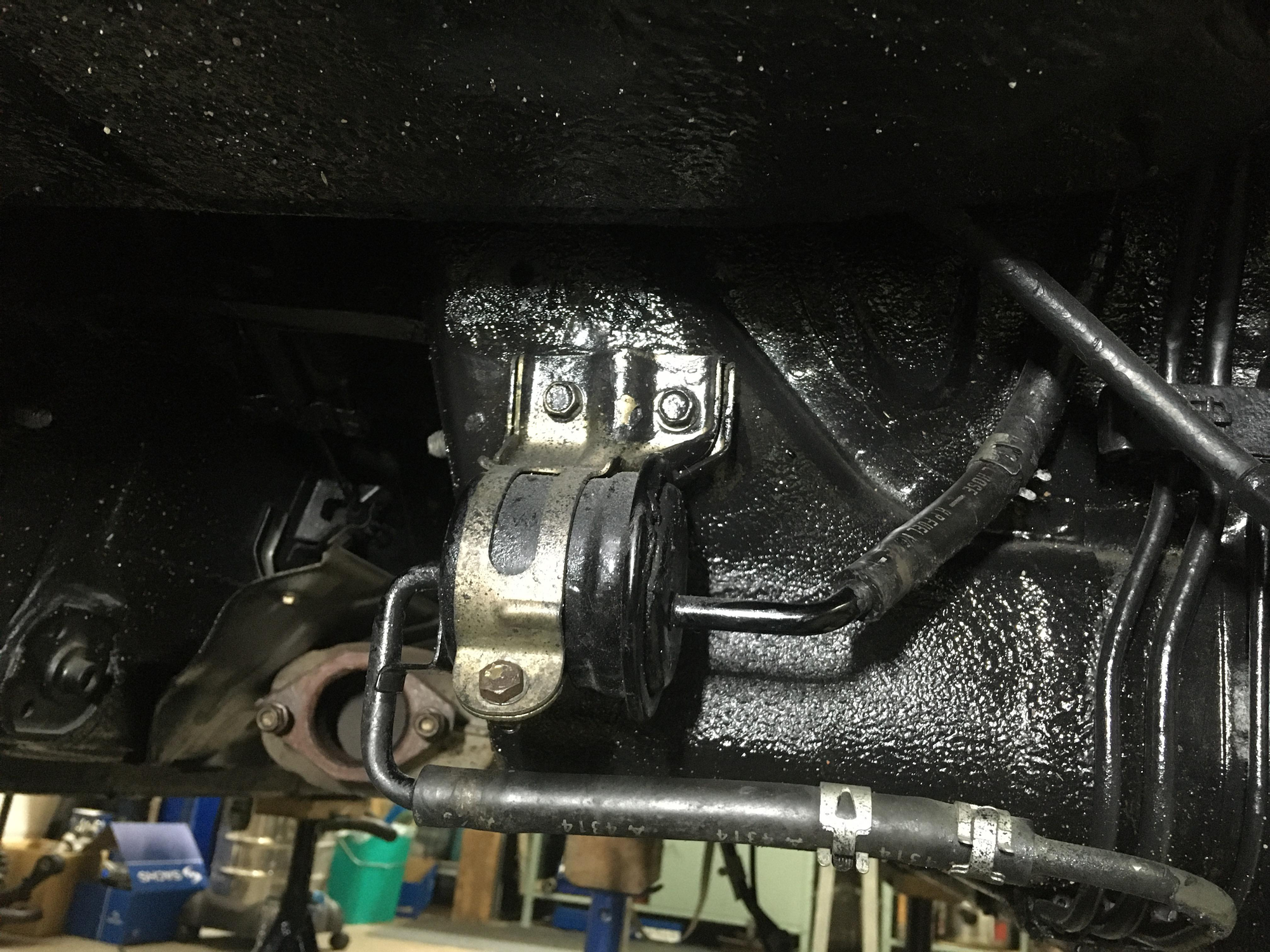

Every oil change is a chance to scan all the rubber bits, radiator and heater hoses, accessory belts, fuel and vacuum lines, the PCV and breather hoses, shifter boots, and sway-bar end links. Replace anything cracked, swollen, soft, or oily. Check ball joints, tie-rod ends, and dust boots, clean and lubricate caliper slide pins, measure pad thickness evenly, and verify the handbrake holds on a hill. Underneath, listen for loose heat shields and snug hardware. Up top, keep an eye on soft-top fabric, stitching, and the drains, and don’t forget a quick shot of lube on hinges and locks.

A Simple Planner for a Daily-Driven NB in Humid or Dusty Use

Think in easy, repeatable blocks. Every five thousand miles or six to twelve months, change the oil and filter, rotate the tires, top up fluids, clear the soft-top drains, and give the underside a quick inspection. Every fifteen thousand miles or about a year to a year and a half, service the air filter, inspect brakes, steering, suspension, and boots, and lubricate locks and hinges. Every two years, flush the brake and clutch fluid and replace the cabin filter on NB2 cars. Every thirty to sixty thousand miles, change gearbox and differential oils and do a deeper chassis check. And if the timing belt history is unknown, or the car lands in that six- to eight-year window, schedule the full timing package with water pump and seals so you can forget about it for another cycle.
