Miata Towing Capabilities: What’s Possible and How to Do It Safely

Mazda’s official line in recent U.S. MX-5 manuals is blunt: your MX-5 isn’t designed for towing. In practice, that means there’s no factory tow rating, effectively 0 lb, and Mazda doesn’t support towing in the U.S. Despite that, plenty of owners still pull tiny “tire trailers” to track days or use super-light utility trailers for wheels, tools, and fuel. It can work when you keep the load small and the tongue weight conservative, but it’s still outside Mazda’s U.S. recommendation, so you’re taking on the risk.

Legal and regional context (U.S. vs. UK/EU)

In the U.S., there’s no official tow rating and manuals say “do not tow,” full stop. If you tow anyway, understand that you could run into insurance or liability issues. In the UK and EU, different rules apply. Towbar type-approval matters, and using a non-approved bar on a post-1998 car can be a legal or insurance headache. Local rules also set thresholds for trailer brakes, lighting, speed limits, and weight ratios. Always confirm what applies to your car and country before you bolt anything on.

What’s actually doable in practice

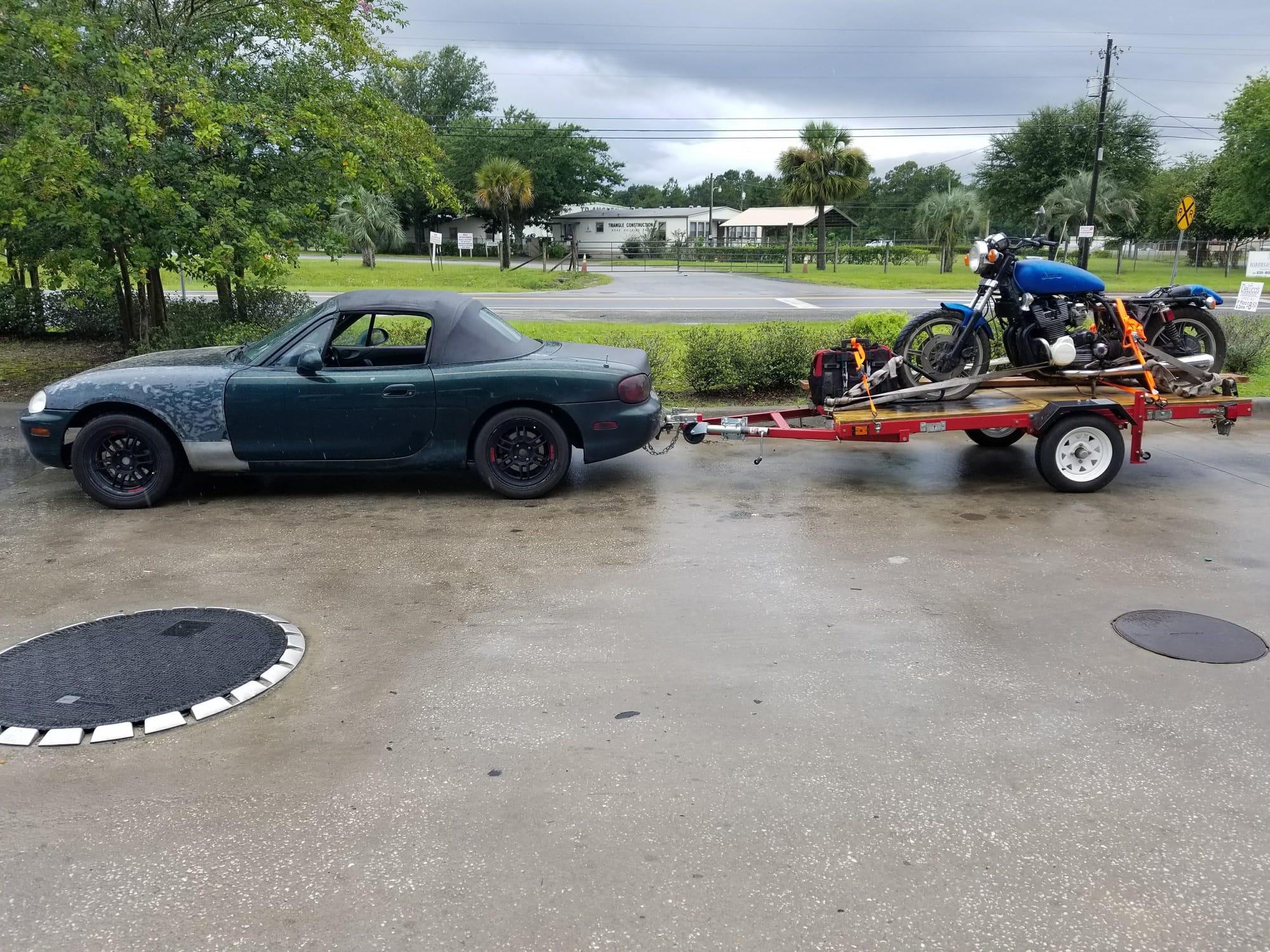

The realistic use case is a super-light single-axle “tire trailer” carrying four track wheels, a jack, stands, basic tools, and maybe a couple of fuel jugs. Owners who’ve done this for years stick to modest trailer masses and aim for balanced loading. The theme is discipline: small loads, smart packing, and mechanical sympathy.

Hitches you can buy (and what the numbers mean)

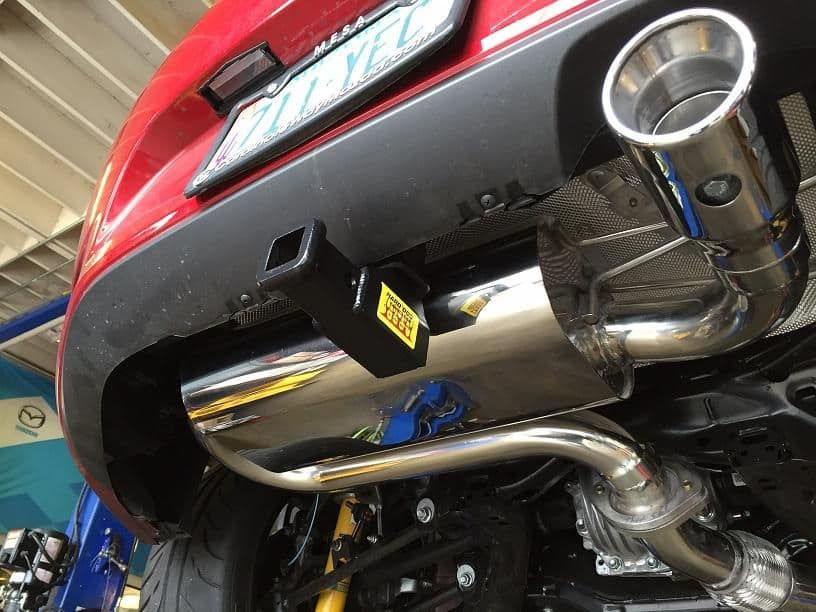

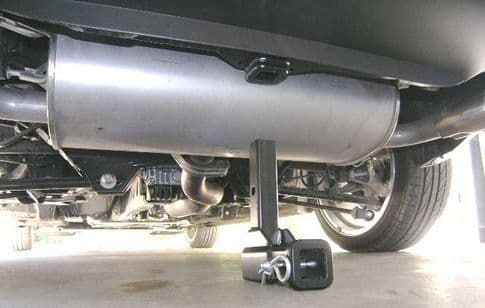

Aftermarket Class I receivers exist for NA, NB, NC, and ND. You’ll see hardware labels like 2,000 lb gross trailer weight and 200 lb tongue weight because that’s the hitch class rating. The limiting factor is still the vehicle. Even if the hitch says it can take more, you must honor Mazda’s stance and stay within the smallest relevant limit. Install details vary by generation, expect bumper cover removal, exhaust clearance checks, and, on newer cars, a preference for “hidden” receivers and removable drawbars.

Smart trailer choices

Pick an ultra-light, low-deck, single-axle trailer so you’re not pulling a billboard. Race-style tire trailers are ideal: wheels up front, a lockable box in the middle, and liquids positioned carefully. If your region requires brakes above a certain weight, follow the law. Even below the threshold, a small braked trailer can shorten stopping distances and reduce heat in the car’s brakes.

Electrical and lighting done right

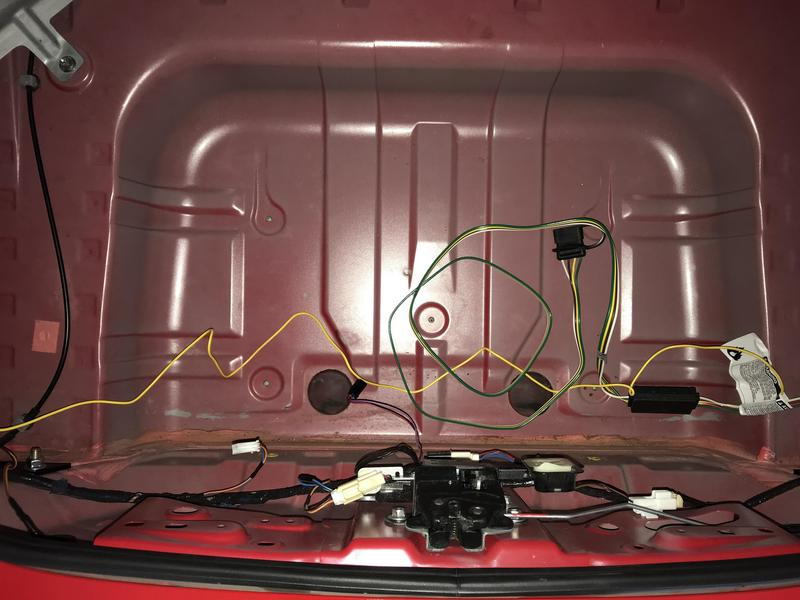

Use a powered 4-pin converter so trailer lights don’t load the Miata’s circuits directly. Route the harness through grommets and split loom, keep it clear of the exhaust and moving suspension parts, and ground it properly. On ND cars in particular, space is tighter, so follow a proven wiring path and protect it from heat and abrasion.

Chassis, cooling, and driveline considerations

Extra mass and aero drag raise brake temps and coolant temps. Go in with fresh DOT 4 brake fluid and healthy pads, leave more following distance, and watch coolant temps on long grades or hot days. If numbers creep up, back off. For manuals, avoid clutch slip on hills, start smoothly in first, and downshift early to use engine braking on descents. Keep the engine in its torque band; don’t lug in tall gears with a trailer attached.

Driving technique and safety margins

Cap your speed, short wheelbase plus added drag and weight leaves less stability margin. Proper tongue weight (aim for roughly 8–12% of total trailer mass), correct tire pressures on both car and trailer, and balanced cargo do more to prevent sway than bolt-on gadgets at these tiny scales. In gusts or when trucks pass, slow down and leave extra space. If sway starts, lift gently, keep the wheel straight, and let it settle rather than stabbing the brakes.

If you’re towing the Miata instead

Going the other direction and hauling the Miata behind something bigger? Flat-towing a modern manual MX-5 is generally discouraged because the transmission may not lubricate properly with the engine off. The safest options are a full trailer or a professional recovery setup that keeps the drive wheels off the ground.

Generation-by-generation notes

NA/NB (1990–2005): Hitch options exist, and many owners tow tiny tire trailers with very conservative tongue weight. Watch exhaust routing and bumper cover fitment. Official U.S. guidance is still “no towing.”
NC (2006–2015): Plenty of hitch installs out there, commonly used for tire-trailer duty. Same “no tow” stance in U.S. manuals.
ND (2016–present): Hidden receivers are popular. Wiring is tighter, so a powered converter and careful routing are key. Manuals continue to say “no towing” in the U.S.

A realistic “safe envelope”

Think well under 1,000 lb total trailer mass, and honestly, many owners land around 300–600 lb fully loaded for a Miata tire trailer. Target 8–12% tongue weight, which often ends up around 45–100 lb for these micro-trailers. Verify with a tongue-weight scale and shift cargo until the trailer tracks straight without oscillation. No matter what your hitch’s label says, the vehicle and the manufacturer’s guidance are the real limiters.

Parts and setup checklist

Plan on a receiver hitch matched to your generation, a powered 4-pin lighting kit, and a ball mount with the correct drop so the trailer rides level. Add a tongue-weight scale and a torque wrench for regular checks. Refresh your brake fluid with DOT 4, inspect pads and tires, and bring tie-downs, wheel chocks, and spare fuses or bulbs. Use owner install threads for gen-specific bumper and wiring tricks before you start cutting or drilling.

A well-sorted tire-trailer setup typically carries four wheels on an elevated rack, a lockable center box for tools, and liquids positioned low and near the axle. The idea is to keep heavy items low and forward enough to hit your tongue-weight target without overloading the hitch or making the trailer tail-heavy.

Mazda’s U.S. guidance is “do not tow” with the MX-5, and there is no U.S. tow rating. If an owner tows anyway, it’s at their discretion and risk. Laws vary by region for brakes, lighting, speed limits, weight thresholds, and towbar approvals, especially in the UK and EU, so always verify what applies to your car and location.

If it’s legal where you live and you accept the risk, the way Miata owners make towing work is by keeping everything tiny: tiny trailer, tiny load, tidy wiring, and conservative driving. Treat it like you added a sail and a few hundred pounds of inertia. Keep it light, keep it level, watch your temps, and leave yourself extra margin everywhere.
