Miata Roll Bar Options: Safety and Style for Every Budget

The Mazda Miata (MX-5) is one of those classic roadsters that perfectly blends open-top fun with lightweight agility. However, the same convertible roof that makes a Miata so appealing can become a concern if you’re pushing the limits at track days, or even if you just want some extra peace of mind driving on the street. That’s where adding a proper roll bar comes in. Below, we’ll talk through why you might want one, explore different designs and brands, and look at the pros, cons, and installation tips. We’ll also cover considerations like seats, harnesses, and insurance. Let’s get started.

Why Add a Roll Bar to Your Miata?

Many track-day and autocross events require some form of rollover protection for convertibles, and the Miata is no exception. Although it has a low center of gravity and doesn’t tip over easily, accidents can still happen, especially in high-performance settings where off-track excursions can be rough. Track officials often use a test called the “broomstick test,” where they place a rod from the top of the windshield frame to the top of the roll bar; your helmeted head should be at least a couple of inches below that line. If you don’t pass, you might be sidelined.

Even if you’ve never seen a racetrack in your life, a roll bar can offer peace of mind on the street. The Miata’s windshield frame is fairly thin, and you don’t have much overhead protection if the car flips. A sturdy, well-installed roll bar can protect your head from being crushed in a rollover. On top of that, many drivers notice a slight increase in chassis stiffness. Steel reinforcement behind the seats helps the car feel more rigid in corners, which is a bonus whether you’re cruising around town or pushing your luck on a canyon road.

Roll Bar vs. Roll Cage: What’s the Difference?

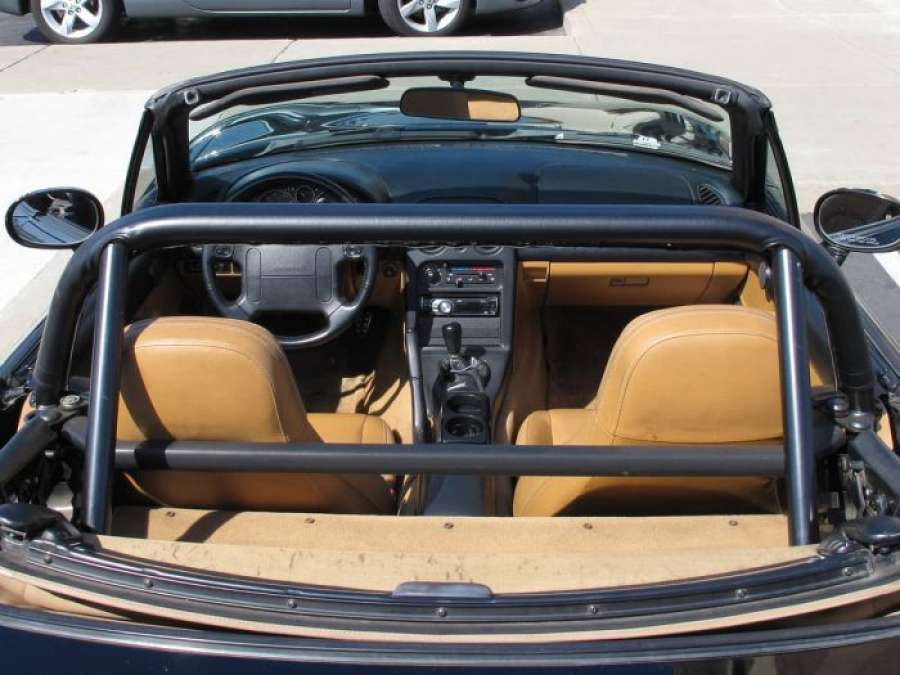

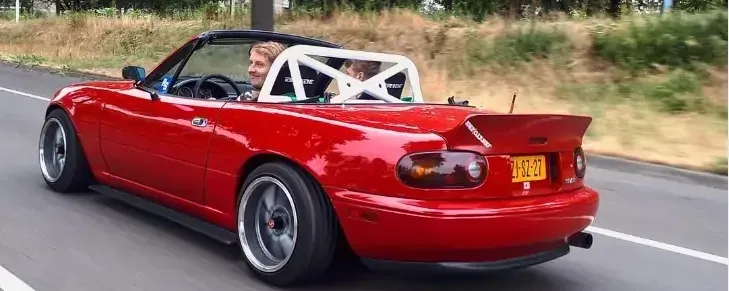

A roll bar typically consists of an upside-down U-shape (the main hoop) behind the seats, plus rear stays or braces that extend into the trunk or rear deck area. Many also include a horizontal harness bar to attach racing harnesses. These setups are lighter than a full roll cage, easier to install, and less intrusive, making them a popular choice for street cars that see occasional track use.

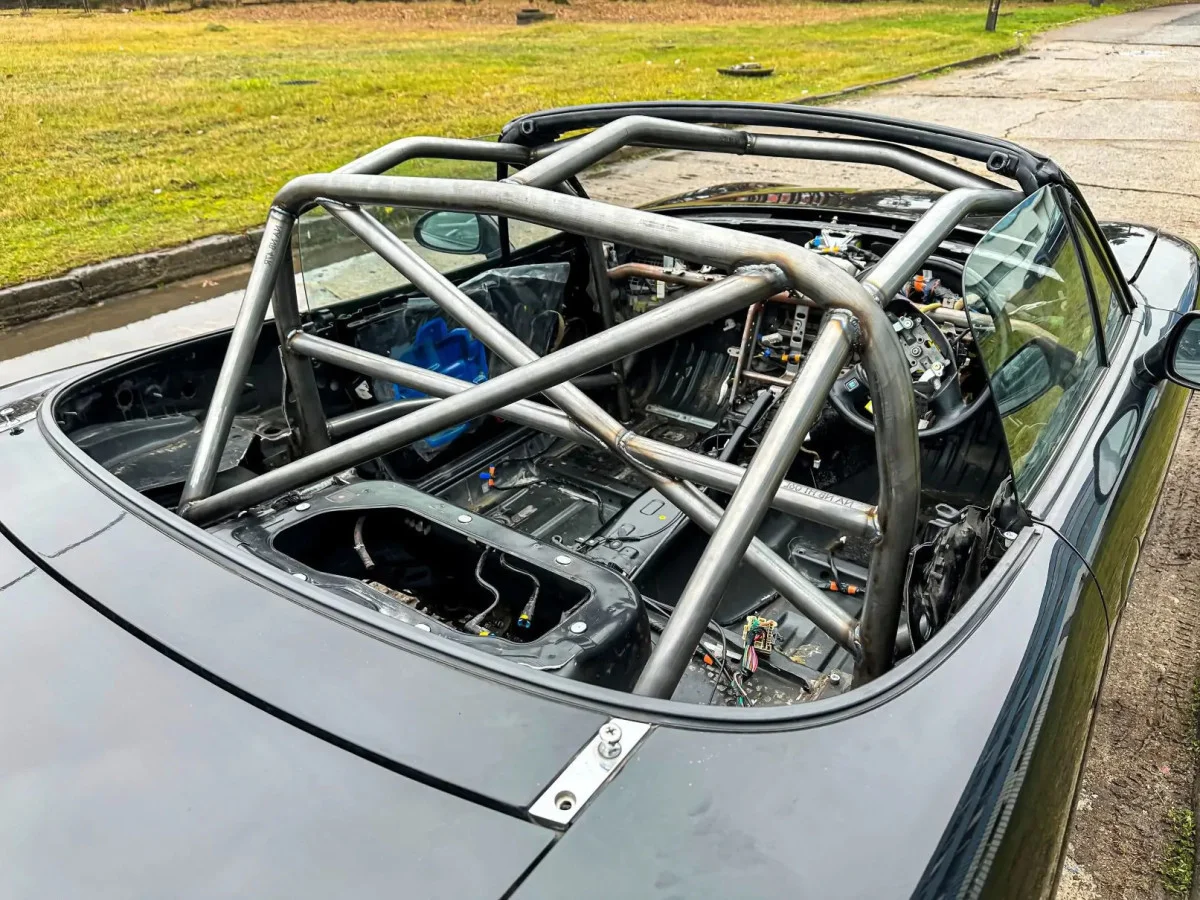

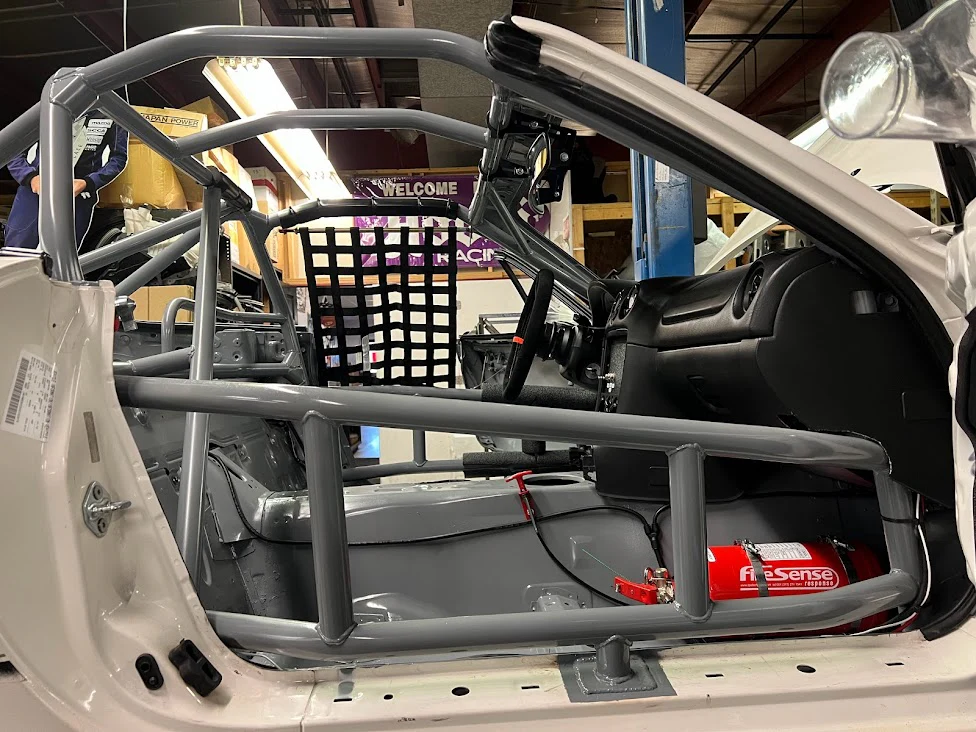

A roll cage, on the other hand, extends forward around the windshield posts (A-pillars) and often has door bars and a roof section. This creates a metal framework surrounding the driver. It offers maximum protection and stiffens the chassis significantly, but it also adds weight, complexity, and can be a real headache for daily driving, both literally and figuratively. Head clearance is limited without a helmet, and climbing over door bars isn’t exactly convenient for a quick trip to the grocery store.

Safety Considerations

One of the biggest talking points in the Miata community is whether a roll bar might become a hazard if you hit your head on it during a crash. In a severe accident, your torso and head can move around more than you think. If your seat and belts allow your head to swing back, you could impact the bar. This is where proper seats, seat belts, and padding come into play.

Standard Miata seats sit a bit higher and can recline further back, which might increase the chance of head contact with the bar. Aftermarket bucket seats, especially those with a taller headrest, keep your head more stable. A racing harness that keeps you from flailing around also reduces that risk. Still, it’s important to have adequate head clearance, particularly if you plan to wear a helmet on track. On the street, you won’t be helmeted, so giving yourself some space between your head and the bar is crucial for everyday safety. Adding high-density roll-bar padding (SFI- or FIA-rated) is also a smart move, rather than using regular foam from a hardware store.

Seat and Harness Considerations

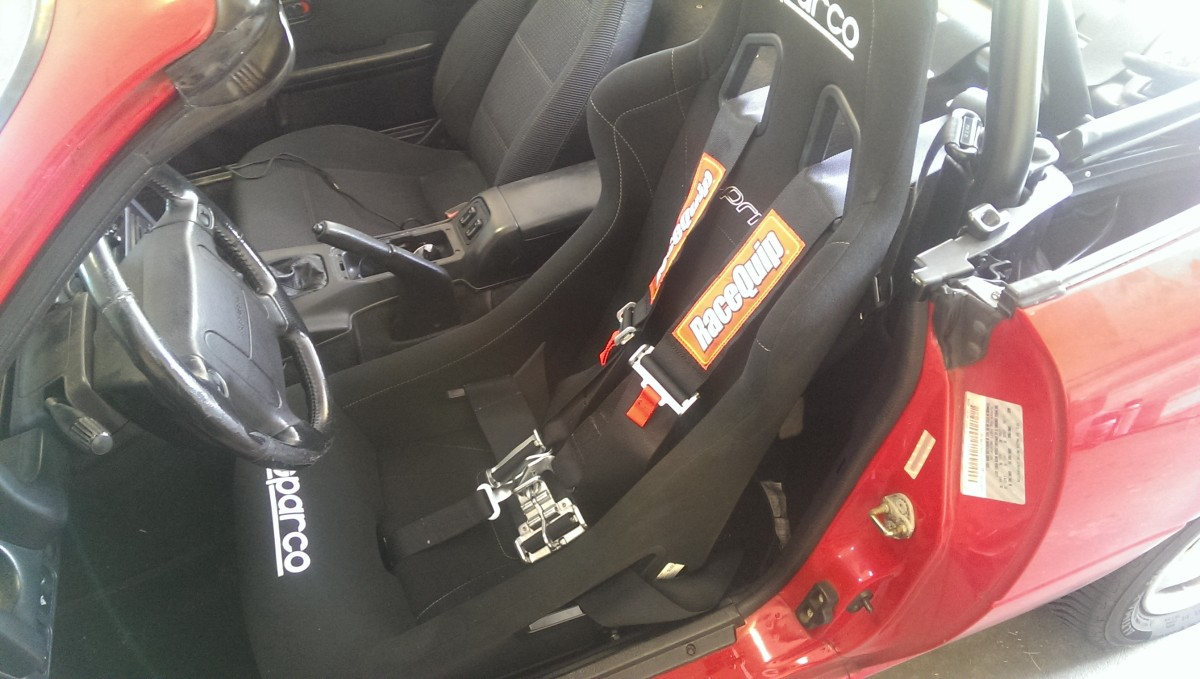

Your choice of seats affects how you fit in the car and, by extension, how you fit under a roll bar. Aftermarket seats often sit lower and provide more headroom, which is great if you’re tall or want to meet track regulations. Fixed-back racing seats keep your position consistent and offer better support, but they can be less comfortable for everyday driving.

Racing harnesses secure you firmly in place, which is fantastic on track. However, on the street, harnesses can limit your ability to move around and check mirrors or blind spots. In a serious accident without a HANS device, a harness can also increase neck/spine stress if your head whips forward. Because of this, many people retain the stock three-point seat belt for daily use and only use the harness at track events. If you’re going for a 5- or 6-point harness, be sure your seat is compatible and that you have proper mounting points, including an anti-submarine strap to prevent you from sliding under the lap belt in a crash.

Common Miata Roll Bar Designs & Brands

There are several well-known manufacturers that produce roll bars for the Miata across its various generations (NA, NB, NC, ND). Hard Dog (Bethania Garage) is a favorite in the U.S., offering multiple bar designs that meet NASA and SCCA requirements. Blackbird Fabworx makes premium bolt-in bars and half-cages with extra height for taller drivers. Over in the UK/Europe, GC Fabrications and TR Lane are popular, with GC focusing on sleek designs and certifications for competition, and TR Lane known for budget-friendly but sturdy options. Boss Frog is another older brand that still has a presence among Miata enthusiasts.

It’s essential to double-check that the bar you’re buying is made for your specific Miata generation, NA, NB, NC, or ND, because the attachment points and body shapes differ. Also confirm any track or club rules about roll bars if you plan to go racing or attend HPDE events. Some organizations have minimum height or diagonal brace requirements that you’ll want to meet.

Installation Overview

Installing a bolt-in Miata roll bar isn’t overly complicated if you’re handy with tools. You’ll likely need a socket set, wrenches, a drill, and some trim removal tools. Most people can knock it out in half a day or so, though it might take longer if it’s your first time. You’ll start by removing the seats, carpeting, and any plastic panels behind the seats to access the rear shelf area. Then you’ll slide in the bar for a test fit. Many kits require you to drill holes in the chassis, so be sure to mark everything carefully. Backing plates go under the chassis, providing a secure surface for the bolts.

Once the bar is bolted down and torqued to spec, you can trim and reinstall the interior, making sure not to pinch any wiring that might be running under the carpet. The biggest hiccups are typically related to seat clearance. Some bars will push your seat a bit forward or limit your recline angle, definitely something to check if you’re over six feet tall.

It’s also worth noting that certain insurance companies see a roll bar as a modification that suggests “track usage.” Some might raise your premiums or even refuse coverage if they suspect you’re racing, so checking with your insurer beforehand can save headaches later.

Balancing Street Comfort vs. Track Safety

If you’re an occasional track-goer, maybe a few autocrosses or HPDE days per year, a four-point bolt-in roll bar usually strikes the right balance. It should meet the broomstick test requirements, protect you in a rollover, and won’t turn your Miata into an unlivable cage on the street.

Serious track enthusiasts, especially those pushing the car in time trials or wheel-to-wheel racing, might consider a welded 4- or 6-point bar or even a full cage. That’s a bigger commitment, both in terms of cost and changes to your interior. You’ll likely pair it with fixed racing seats, a 5- or 6-point harness, and possibly a head-and-neck restraint system if you’re doing high-speed track work.

If you’re mostly cruising around town with the occasional spirited drive, a roll bar can still offer peace of mind without too much compromise, as long as you choose one with decent padding and maintain enough clearance to avoid knocking your head.

Cost and Budgeting

A typical bolt-in roll bar for a Miata can range from about $400 to $1,000 (USD), or roughly £300 to £700 in the UK. The price depends on the brand, whether it includes a harness bar or diagonal bracing, and if there are any custom finishes. Shipping can also add a chunk of change, especially if you’re buying internationally.

Weld-in bars and full cages will generally cost $1,500 (USD) or more, plus labor if you’re not doing the welding yourself. If you go to a custom fabricator, the sky’s the limit, depending on how intricate you want the design to be.

Choosing the Right Roll Bar

Before you buy, think about how you’ll use your Miata. If you want occasional track access without killing your street comfort, a four-point bolt-in bar is typically all you need. Make sure it’s tall enough to pass the broomstick test, and confirm that you’ll still fit under it once you factor in your seat and helmet. If you’re a serious racer, explore the more extensive options like a weld-in bar or full cage, coupled with race seats, harnesses, and possibly a HANS device.

Most importantly, steer clear of “style bars” that look cool but aren’t designed to protect you in a rollover. Proper backing plates, hardware, and roll-bar padding are crucial for safety. Don’t forget to keep your insurance company in the loop, too. A roll bar can give you the confidence to enjoy top-down driving and track sessions alike, without sacrificing that classic Miata spirit.

Trusted Brands to Explore

• Hard Dog Fabrication (Bethania Garage): bethania-garage.com
• Blackbird Fabworx: blackbirdfabworx.com
• GC Fabrications (UK): gcfabrications.co.uk (also via bofiracing.co.uk)
• TR Lane (UK): trlanefabs.co.uk
• Boss Frog: Available through various online retailers and forums

Always confirm that the bar is designed for your Miata generation, NA, NB, NC, or ND, and meets the requirements of any track organization you plan to run with. Now get out there, drop the top, and enjoy the drive, safely and in style!
